FY-PCM01
FY CNC
SPECIFICATION
| NO. | ITEM | QTY | UNIT | SPEC |
| 1 | FY-PCM3015 body | 1 | Set | Aluminum alloy-FY Group |
| 2 | Width | 2100 | mm | cut width 1500mm |
| 3 | Length | 3500 | mm | cut length 3000mm |

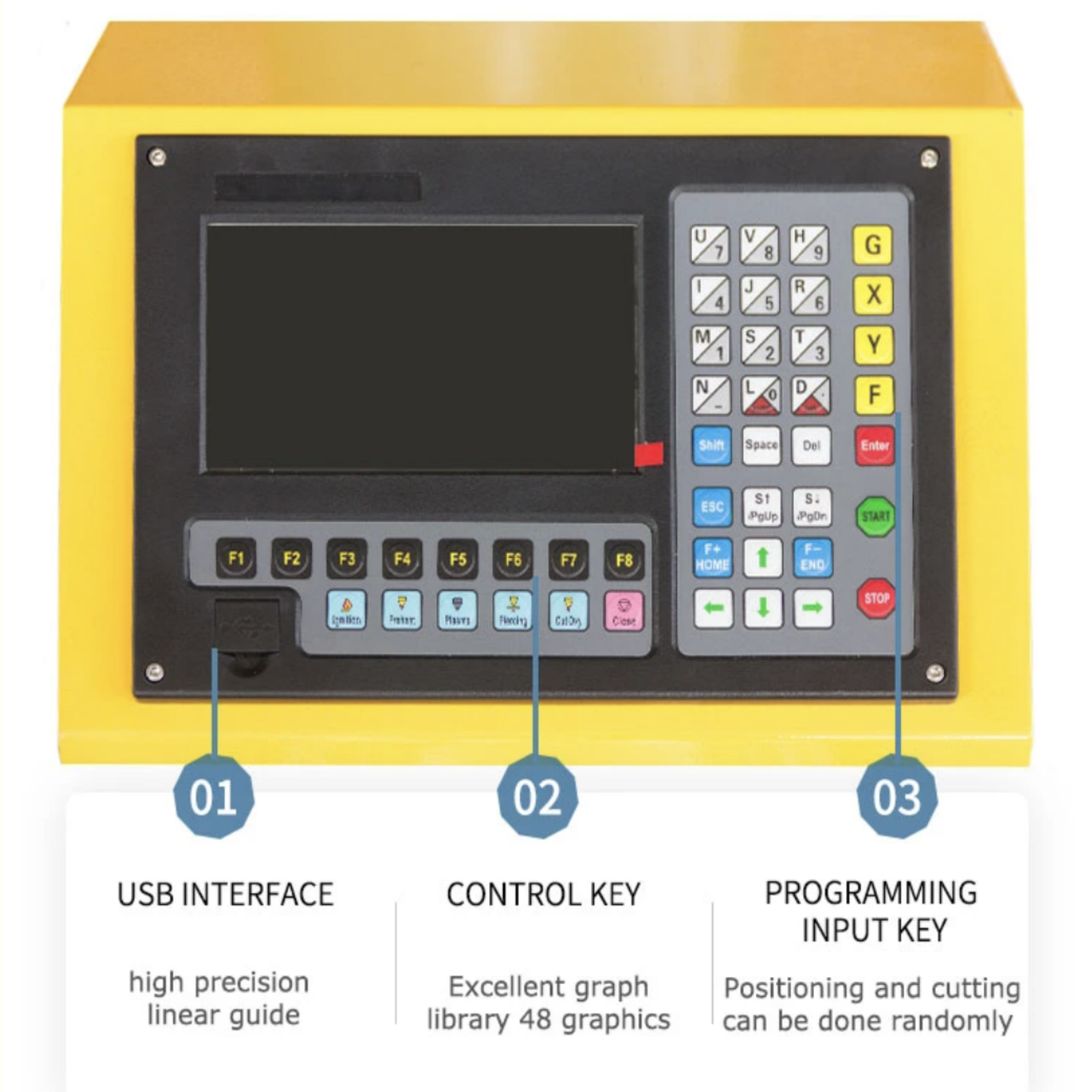

| 4 | CNC system | 1 | Set | Shanghai Jiaotong F2100B |
| 5 | Flame cutting torch | 1 | Set | FY Group |
| 6 | Motor | 2 | Set | China |

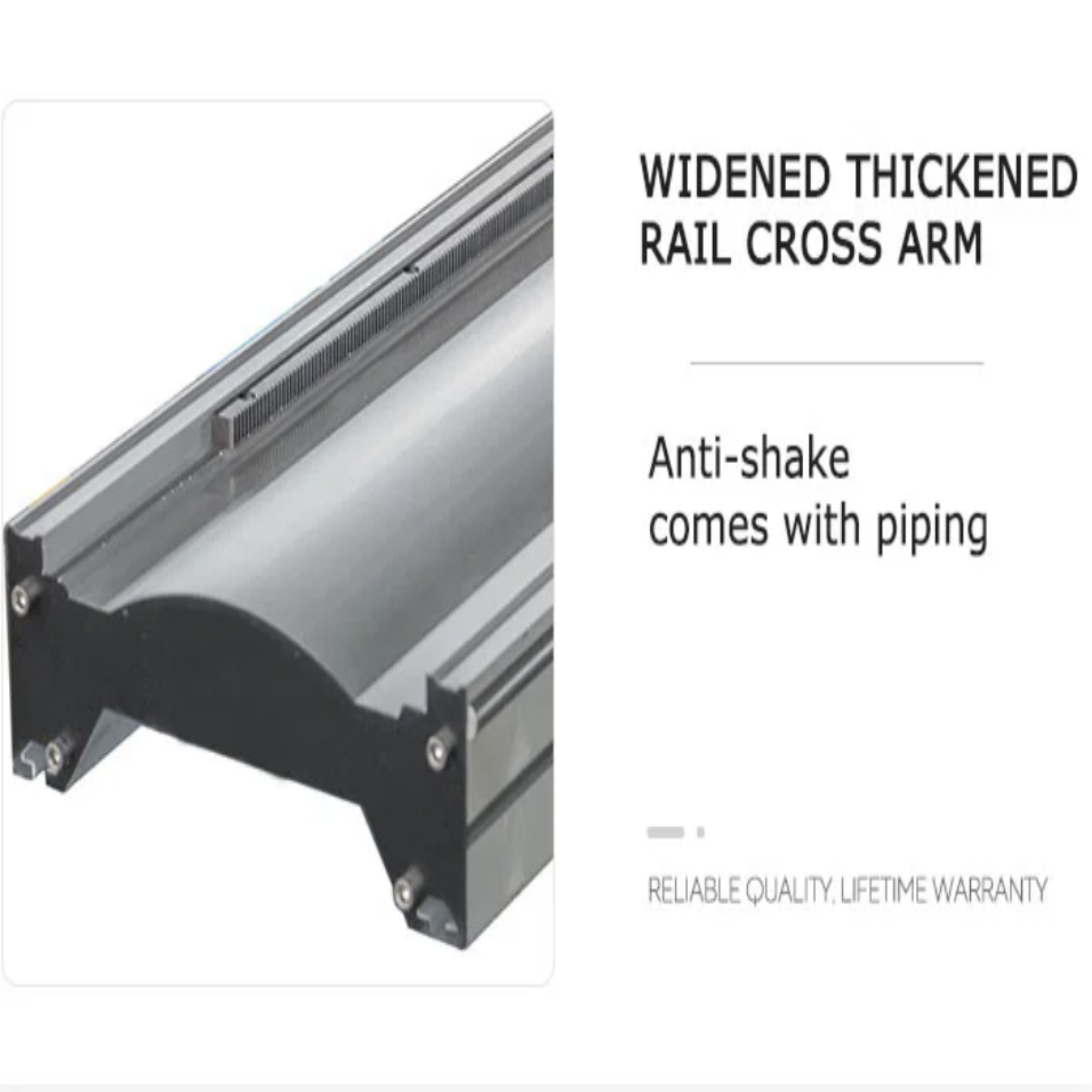

| 7 | Horizontal guide rail | 1 | Piece | Aluminum alloy |
| 8 | Longitudinal guide rail | 1 | Piece | Aluminum alloy |
| 9 | Gear rack | 2 | Set | China |
| 10 | Lifter | 1 | Set | FY Group |
| 11 | Software | 1 | Set | STARCAM Expert Edition |
| 12 | Arc voltage regulator | 1 | Set | Shanghai Jiaotong F1621P |
| 13 | Plasma power (optional) | 1 | Set | Huayuan LGK120 (≤12mm cutting) or Hypertherm |
| 14 | Huayuan LGK200 (≤20mm cutting) or Hypertherm | |||
| 15 | Huayuan LGK300 (≤32mm cutting) or Hypertherm | |||
| 16 | Key selling point | Portable and affordable | ||
| 17 | Applicable Industries | Manufacturing Plant, sheet metal cutting, machinery, shipbuilding, automobile, steel factory, metal workshop etc. | ||

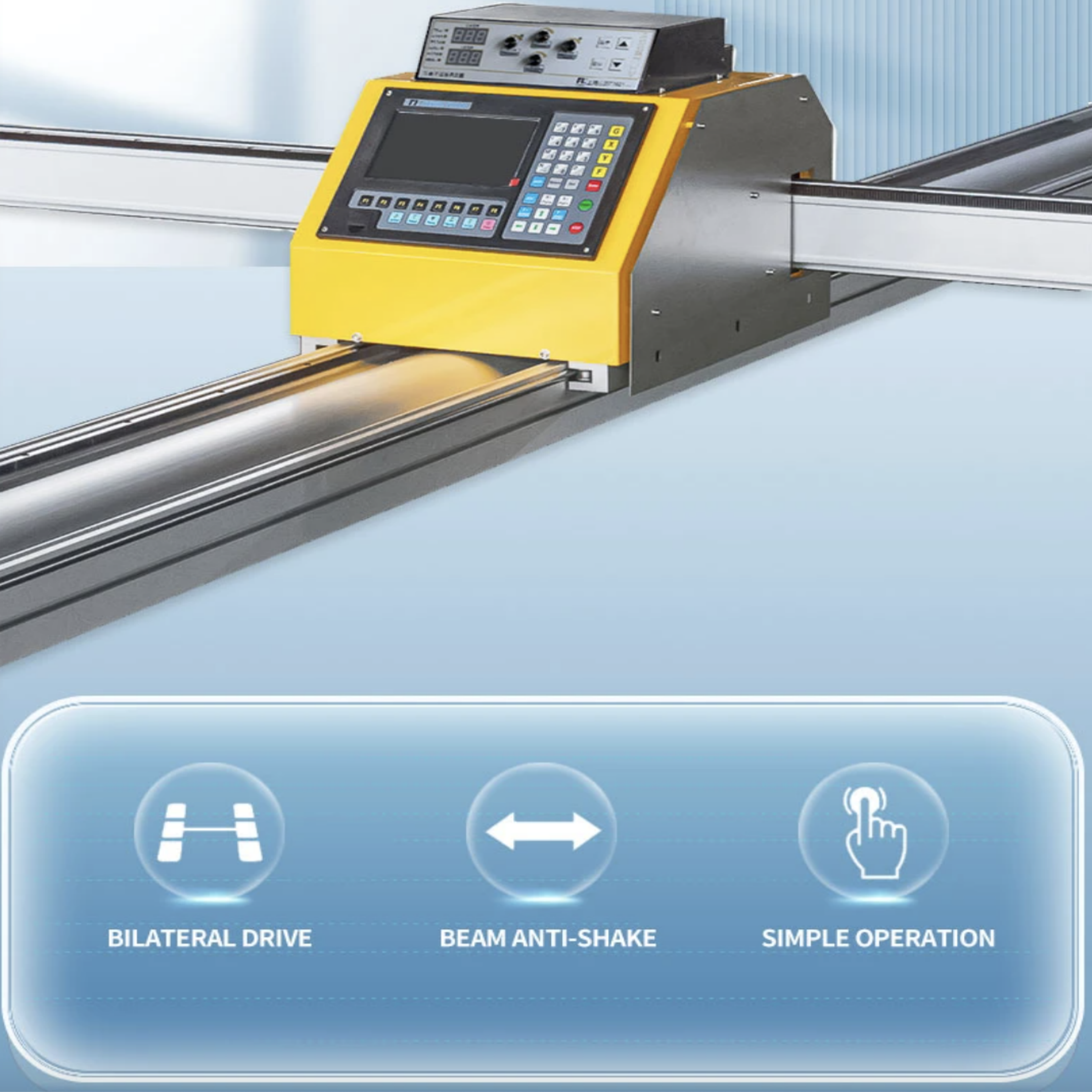

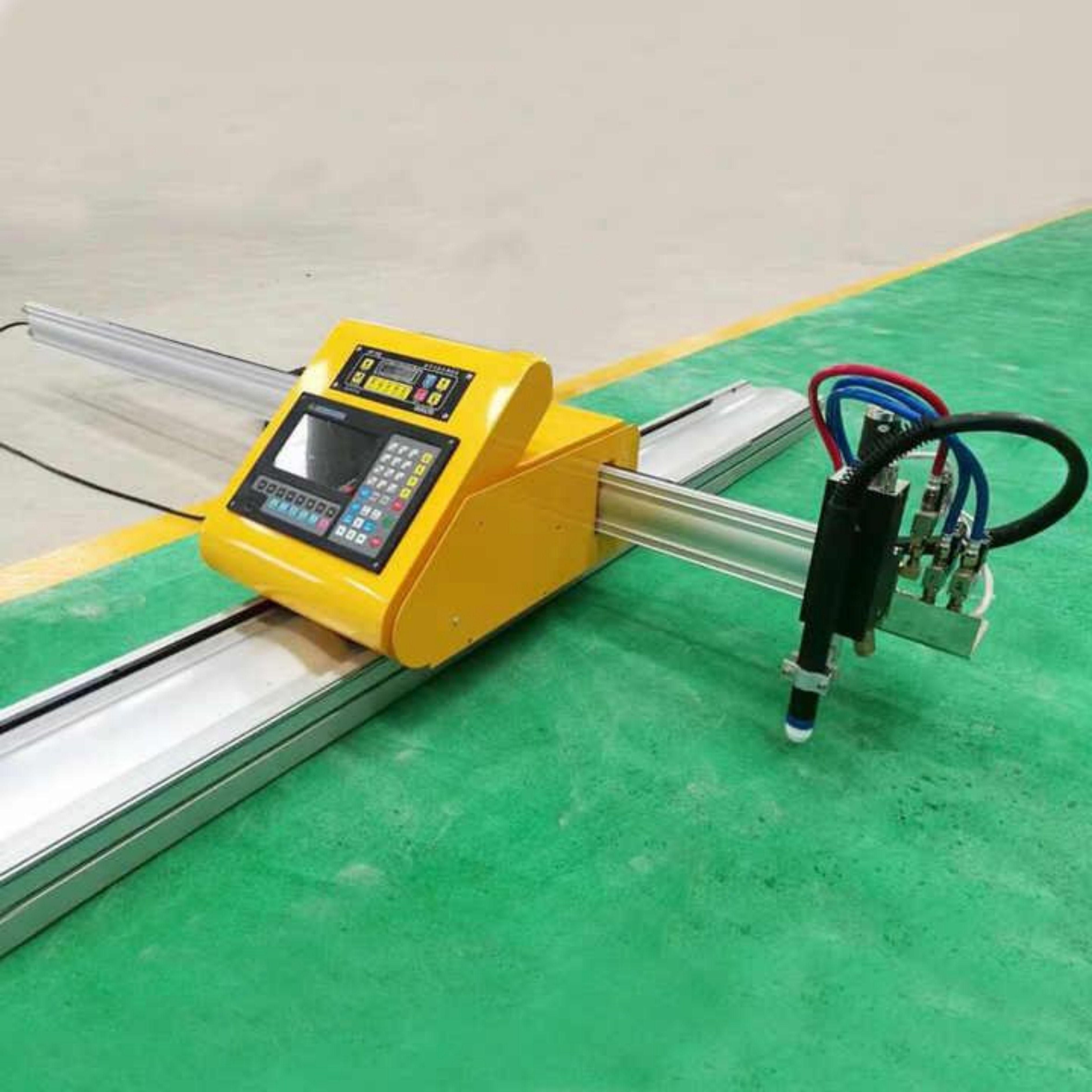

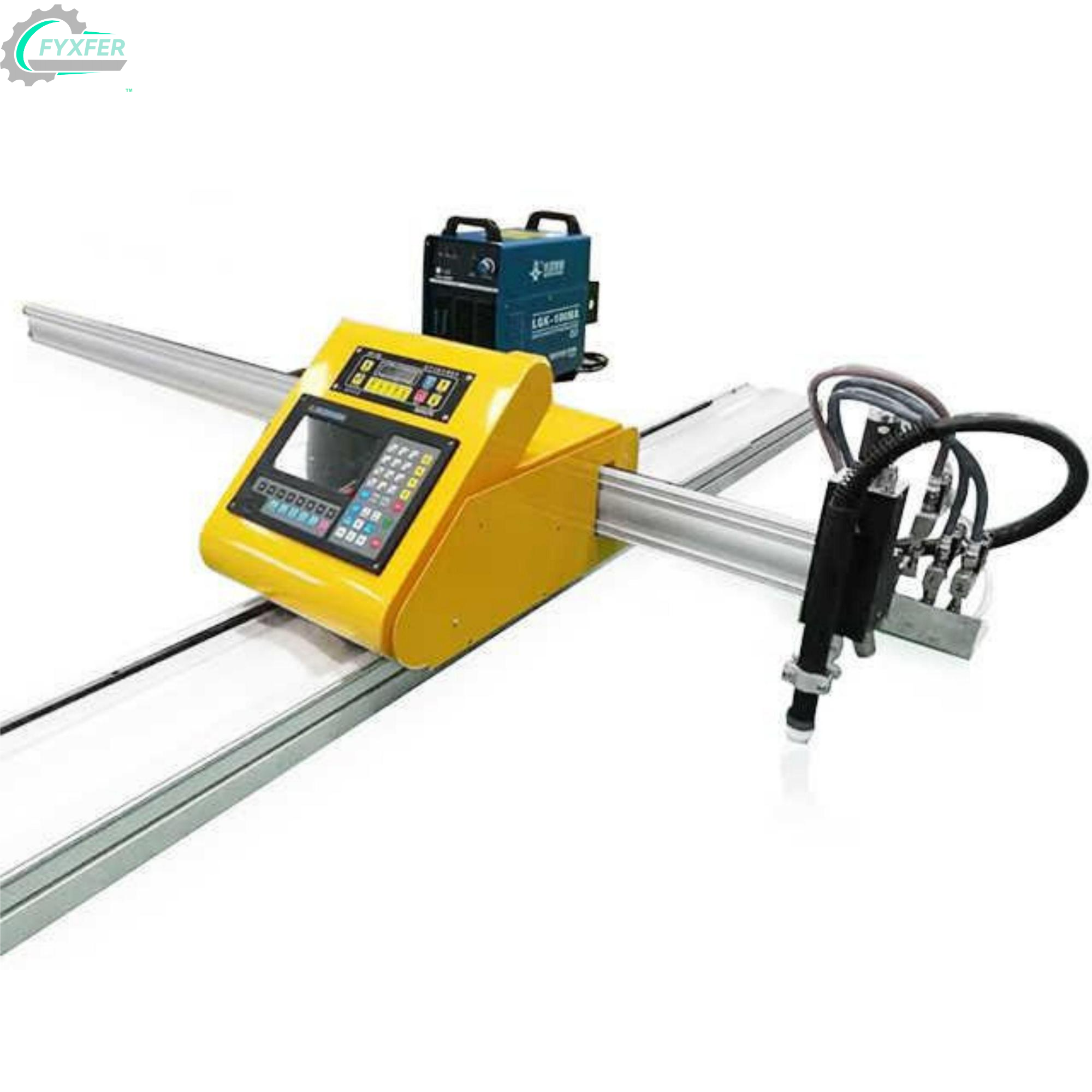

PRODUCT SHOW
TECHNICAL PERFORMANCE
| No. | ITEM | SPEC | |
| 1 | Cut width | 1500mm | |
| 2 | Cut length | 3000mm | |
| 3 | Flame cutting thickness | ≥20mm | |
| 4 | Plasma cutting thickness | ≤25mm | |
| 5 | Cutting torch lifting stroke (mm) | 50-100 mm | |
| 6 | Machine running speed | 50-6000mm/min (E&EO ≤±5%) | |
| 7 | Automatic elevation accuracy | ≤±1.0mm | |
| 8 | Machine G.W | About 1,200 KG | |
| 9 | Longitudinal line accuracy | ±0.2mm/10m | |
| 10 | Straight-line repetition accuracy | ±0.4mm/10m | |
| 11 | Comprehensive accuracy of the whole machine (Take the right comprehensive graph as the standard) Side length (four sides) 1000 x 1000 Dking speed 500-800mm / min |
||
| 12 | Direction accuracy | ±0.1mm | A) Positioning accuracy and repetition accuracy of the whole equipment: meet JB / T5102-1999 standard B) Cutting dimension accuracy and section quality: comply with JB/T10045.3-1999 standard |
| 13 | straightness | ±0.2mm | |
| 14 | roundness | ±0.2mm | |
| 15 | The diagonal difference | ±0.3mm | |
| 16 | Cutting accuracy | ±0.3mm | |
| 17 | Repeat positioning accuracy | ±0.1mm | |
| 18 | Machine line accuracy | 0.2mm | |
| 19 | Cutting surface quality (roughness) (Select δ =25 plate) |
Rz(um)=70+1.2a Visual inspection: Roughness: 12.5 |
|
QUALITY INSPECTION

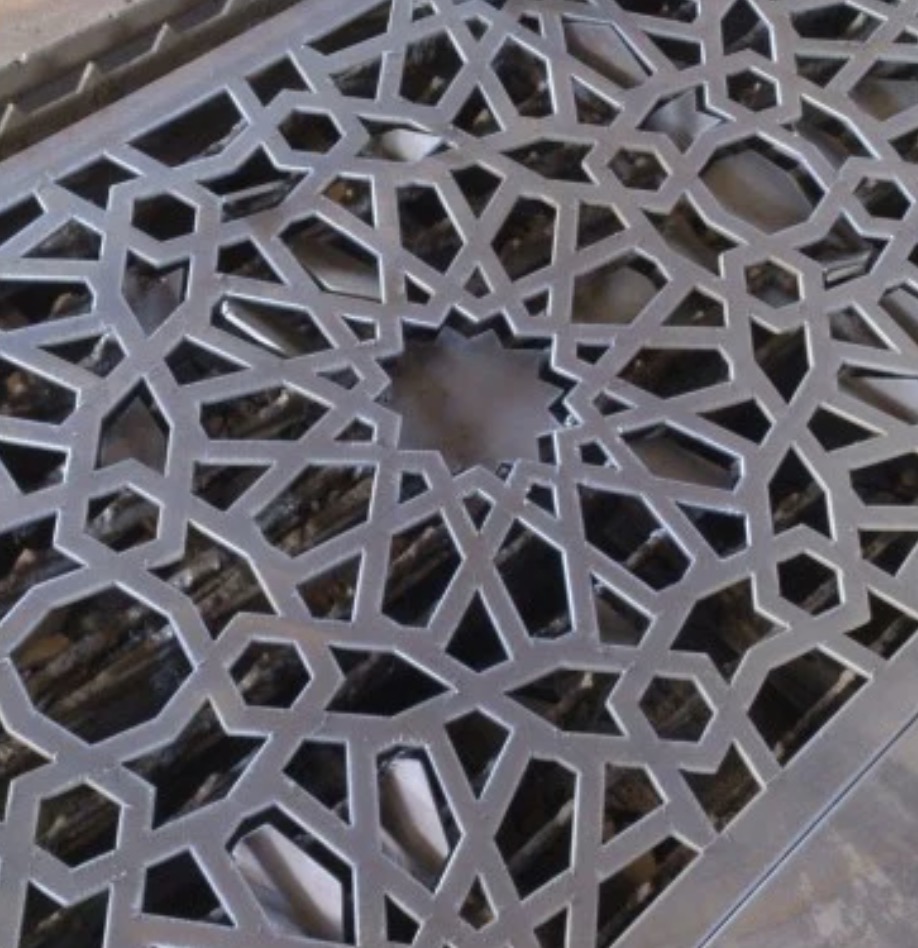

REAL CUTTINGS
PACKING & SHIPPING
CERTIFICATES
CUSTOMER VISIT

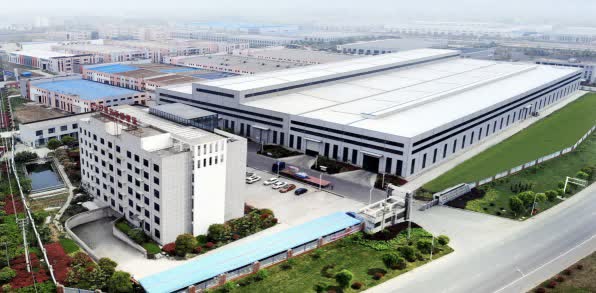

FACTORY VIEW
WHY FY GROUP?
Brand and manufacturer reputation
FY CNC Group has 25 years of experience in mechanical equipment manufacturing, and we are always committed to providing customers with competitive products and a comprehensive after-sales service system.
Usability and operational convenience
We provide our clients with user interface design diagrams, operational training materials, remote diagnostics, and software update instructions.
Compatibility and Scalability
Equipped with a complete set of software, compatible with most computers on the market.
After sales service and parts supply
Provide a complete equipment warranty ranging from 12-36 months. Provide details of remote and on-site training and technical support services.
Provide a complete set of accessories.
Price and cost-effectiveness
We can provide estimated consumables usage costs and cost budgets based on user needs.
Delivery time and service
Under normal circumstances, it takes 3-7 days to ship, and for light customization, it takes 7-15 days to complete the shipment. Please consult the sales manager for specific time.
Payment terms
Provide flexible payment methods, recommend buyers to choose online payment, accumulate online reputation, and provide a fully traceable logistics trajectory.
Case studies and reference clients
Finally, considering the special needs of international buyers, we can provide international transportation cost estimates, import tariff explanations, and local regulatory compatibility analysis.
