FY-LMM05-1
FYXFER
Specification:
Power |
20/30W (50W under R&D) |
Laser Type |
Fiber laser |
Laser wavelength |
1064nm |
Speed |
≤7000mm/s |
Master control |
7-inch touch controller |
Cooling system |
Air cooling |
Minimum line width |
0.001mm |
Repetitive positioning accuracy |
0.005mm |
Marking area |
70X 70mm(2.76X2.76in) |
110X 110mm(4.3X4.3in) |
|
150X 150mm(5.9X59in) |
|
Customizable |
|
Positioning method |
Red light indication |
System |
Multiple languages |
Manage permissions for multiple users |
|
Operating system: Linux |
|
Spray coding modes: static, analog, and encoder |
|
Reserved signal: start printing, printing status, printing completed, fault alarm |
|
Data protection: power-off data protection function |
|
Mistriggering of missed detection: due to material reflection, providing over speed alarm function |
|
Automatically remove intersections to avoid key points |
|
The coding software can achieve single and dual machine coding |
|
File formats |
BMP/DXF/HPGL/JPEG/PLT |
Barcode |
CODE39 CODE128、CODE126、QR、 True Knowledge Code (optional) |
Power supply |
220V/50HZ |
Power consumption |
200W |
N.W |
8.3kg |
Size |
Case: 256x205x217mm Head: 310x60x70mm |
Packing size |
50.5x48.5x38cm |
G.W |
12kg |
Requirement |
External temperature of 0-45 ℃; Humidity ≤ 95; Non condensing; No vibration |

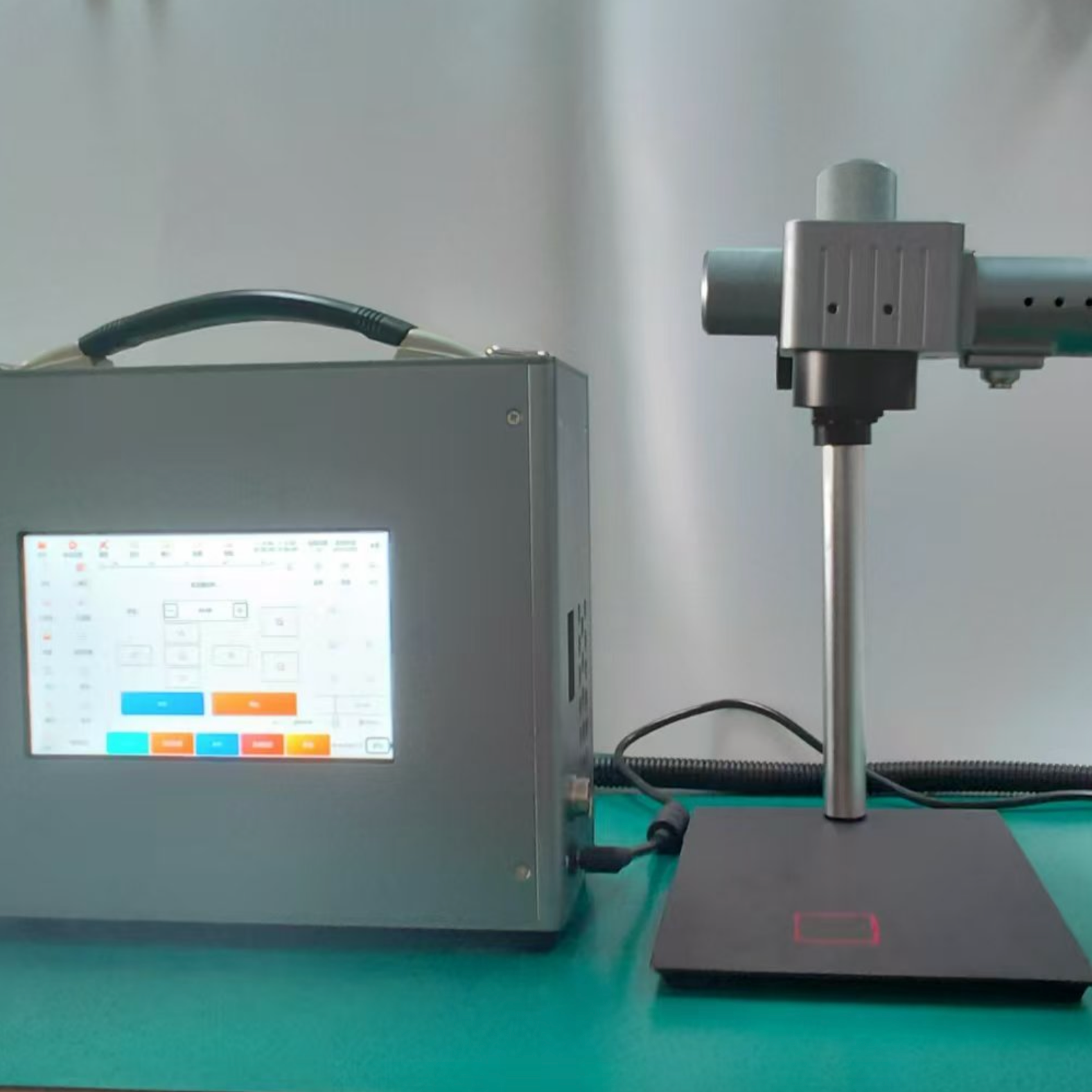

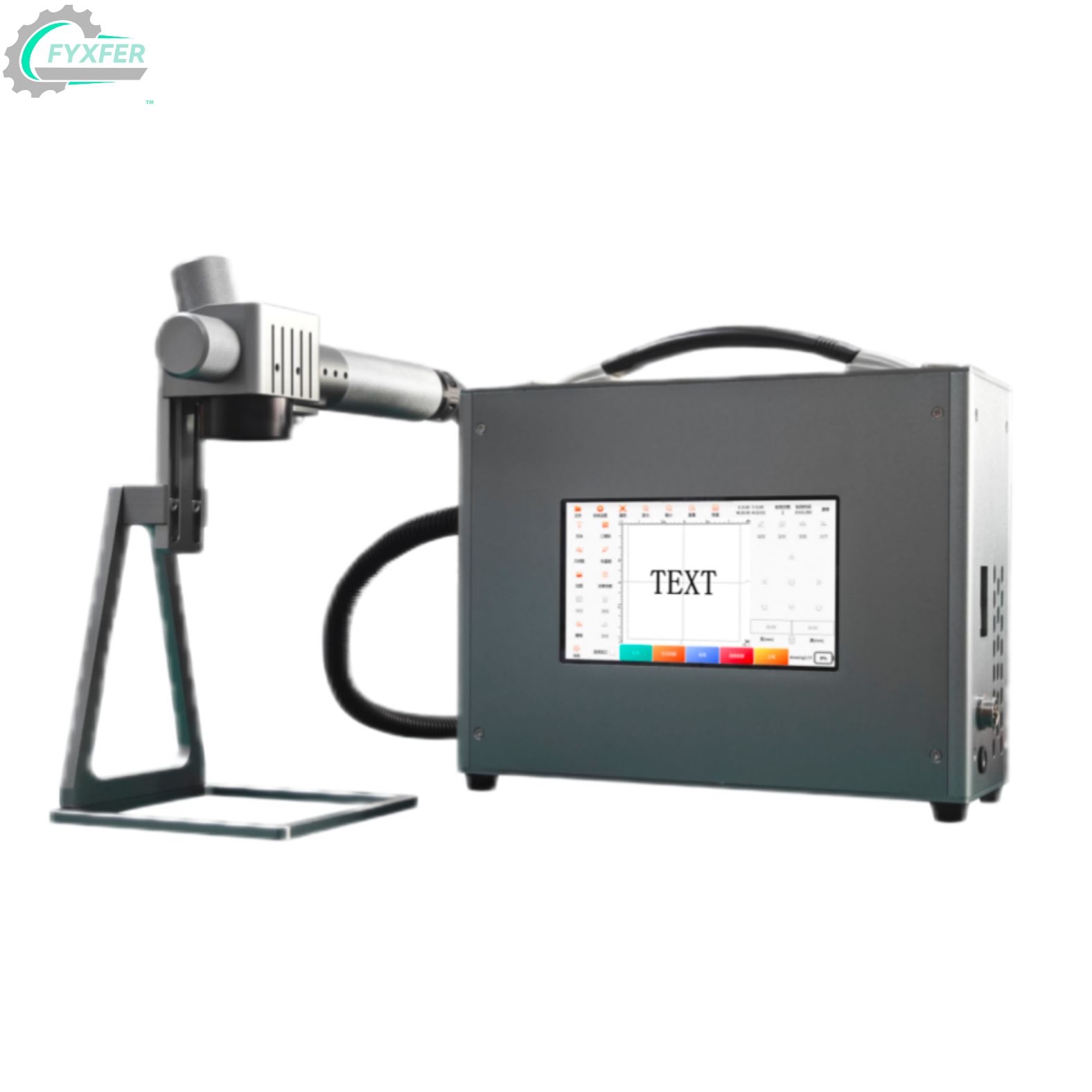

Handheld laser marking machines have been widely used in various industries due to their small size, strong portability, simple operation, and multifunctionality. Below coming some of its features.
Compact size:

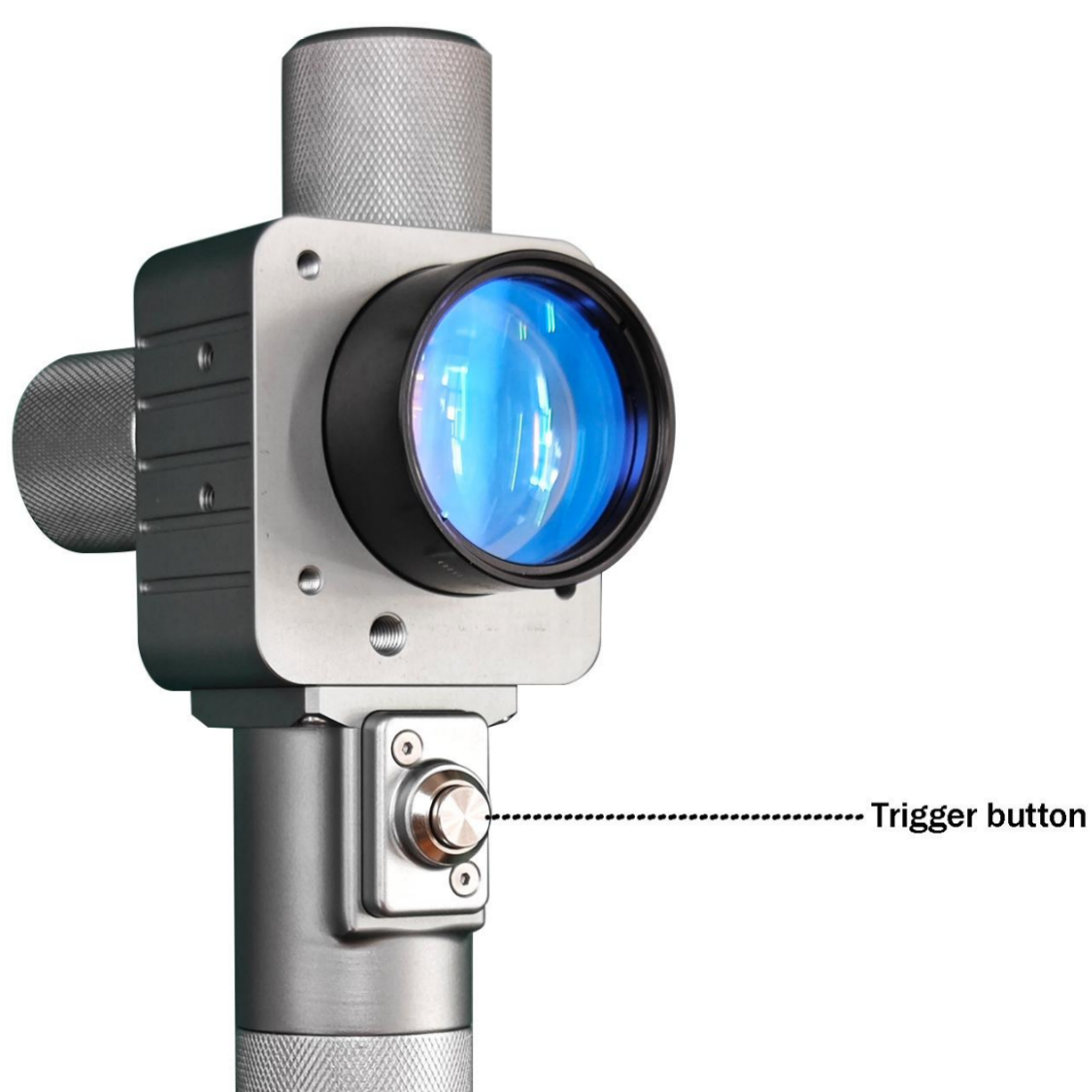

The handheld laser marking machine has a very small volume, and the size of the marking head is similar to a hair dryer, making it convenient to hold for marking operations.

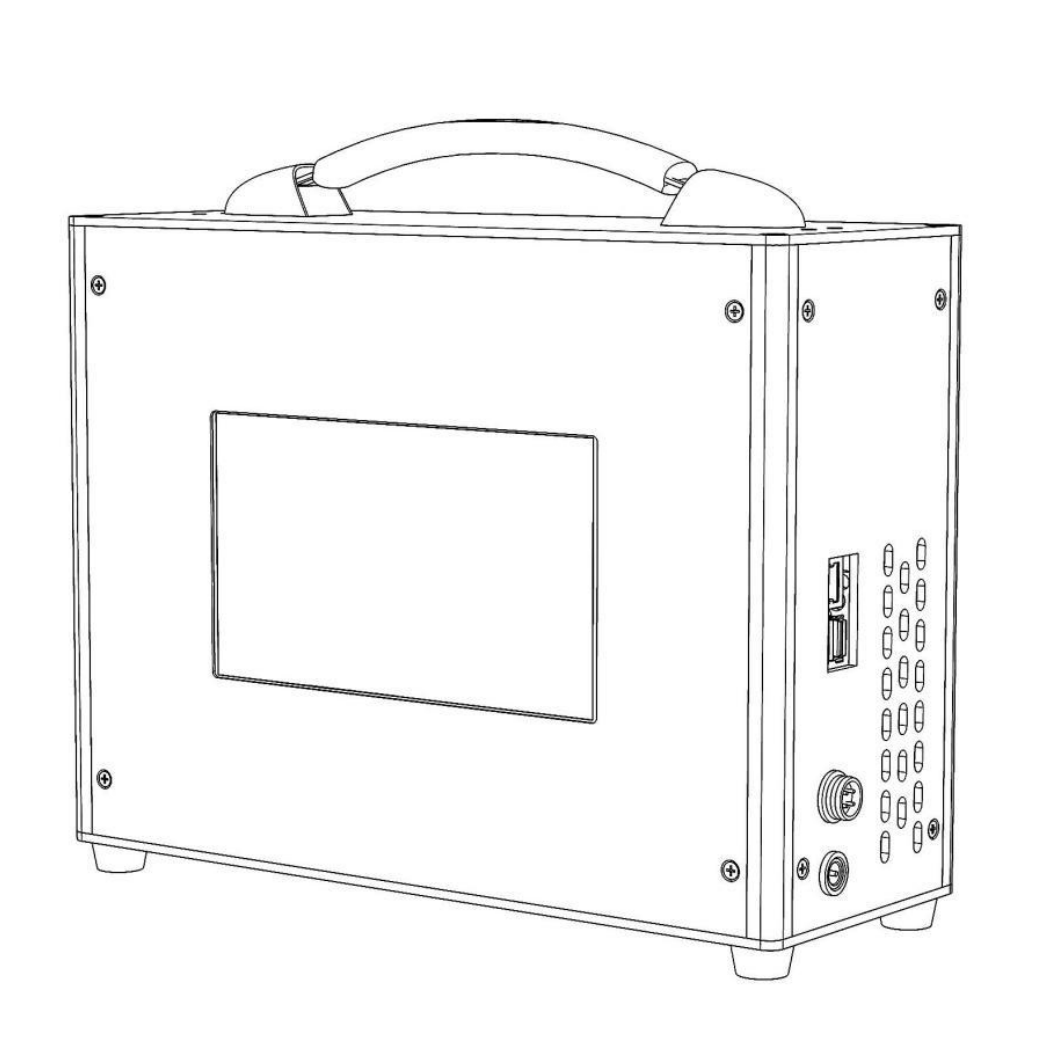

The overall size is 256x205x217mm, suitable for being placed in the trunk of a car for easy transportation.
The compact size allows the device to be used in small workspaces without being limited by space.
Strong portability:

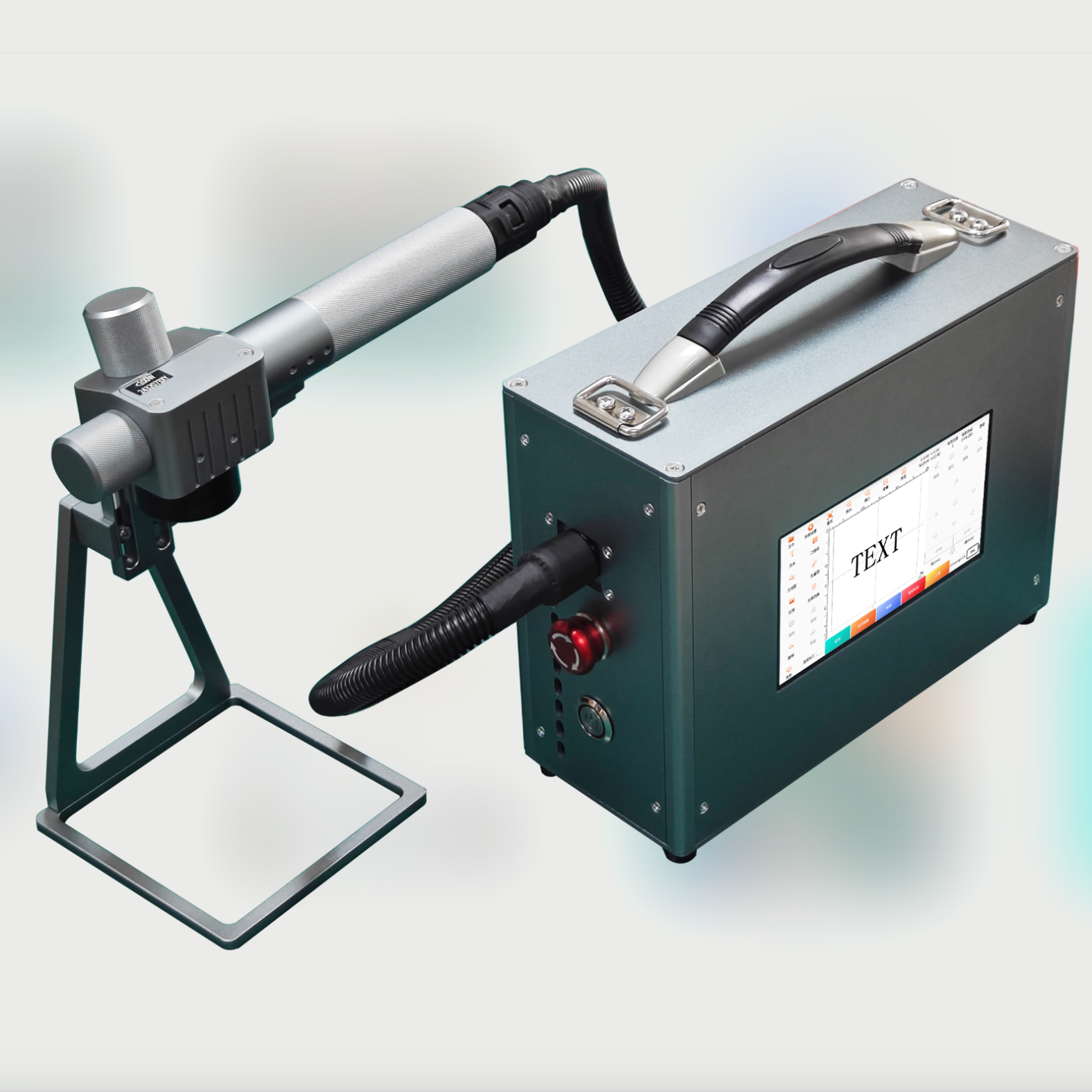

The portable laser marking machine is lightweight and can be easily transported by one person.
Designed for easy portability, suitable for outdoor or high-altitude operations, and can be used in various environments.
It can be air freighted for convenient use in different locations.
Easy to operate:
Easy to operate, the handheld laser marking machine only requires holding the marking head to perform marking operations, without the need for complex operating steps.

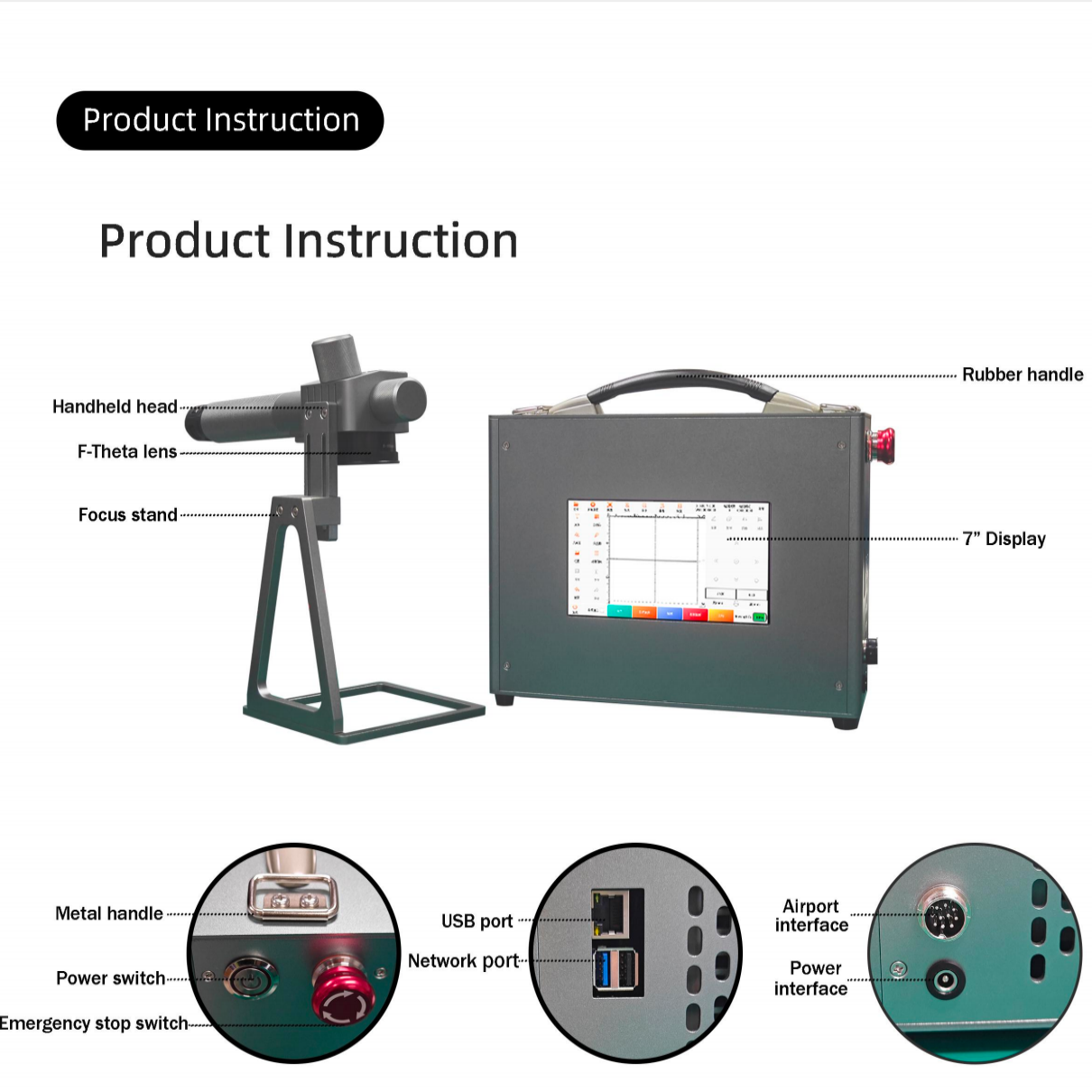

Equipped with a high-definition touch screen, the function buttons are clear at a glance, making it easy to edit and mark.
No consumables required, powerful marking function, easy to operate.
Multifunctionality:
Suitable for various materials:
Including metals, plastics, ceramics, and semiconductors.
You can mark text, patterns, barcodes, QR codes, production dates, and other information.
Capable of high speed, high quality, and high cost-effectiveness, suitable for various precision machining requirements.
Personalized design can be carried out to meet the needs of different industries and customers.
The reason for designing this:
With the development of the laser marking industry, more and more small and medium-sized distributors, as well as end users, are starting to purchase laser marking machines from China
Small batch orders cannot be shipped by sea and can only be transported to buyers by air freight
The cost of air freight is relatively high, and many buyers cannot afford it because it invisibly takes up their profits.
Air freight for small batch orders requires self clearance, and small and medium-sized buyers do not have the ability to clear customs.
As a result, we developed this laser marking machine, which not only solves all the above problems, but also retains the same laser marking machine capabilities and adds new functions!
