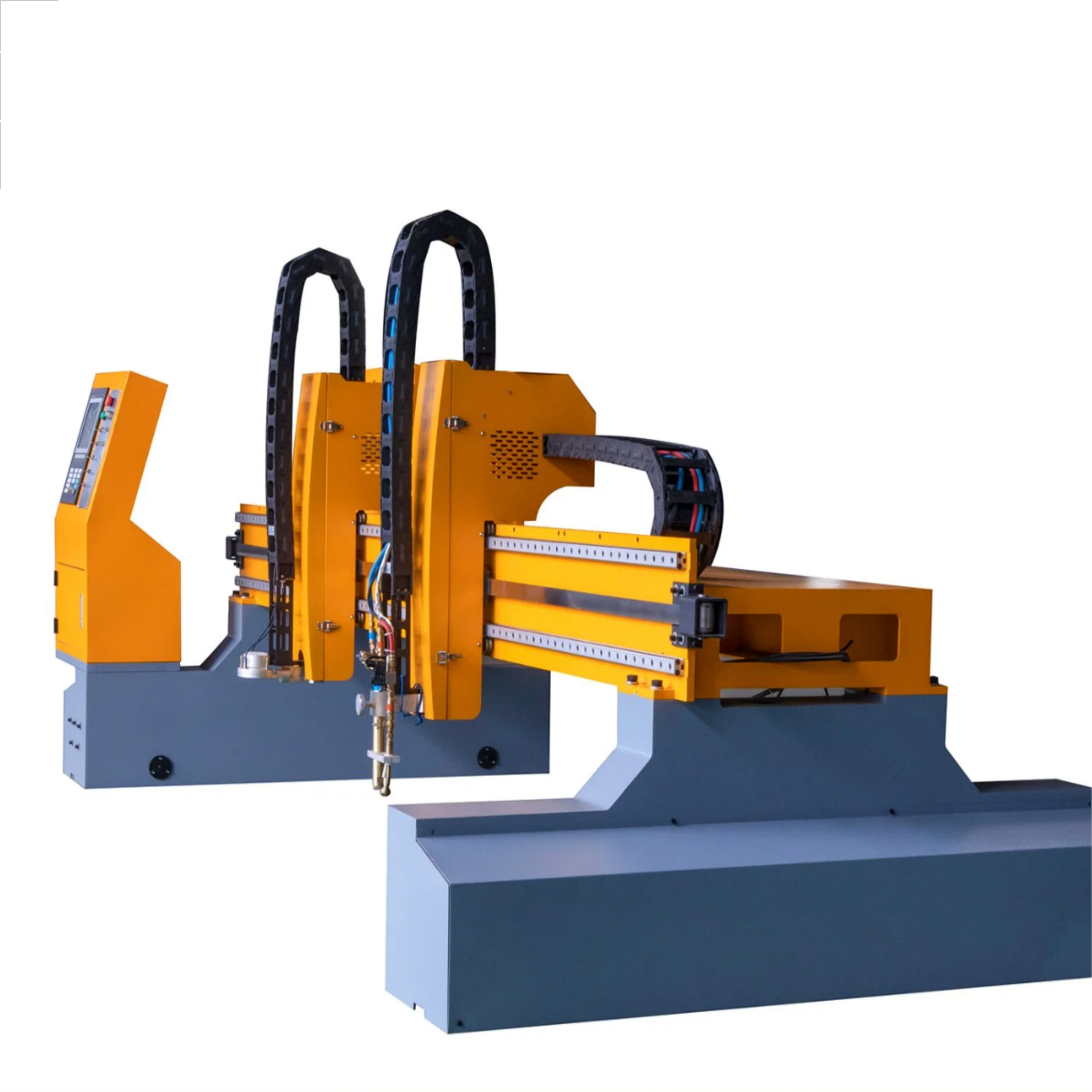

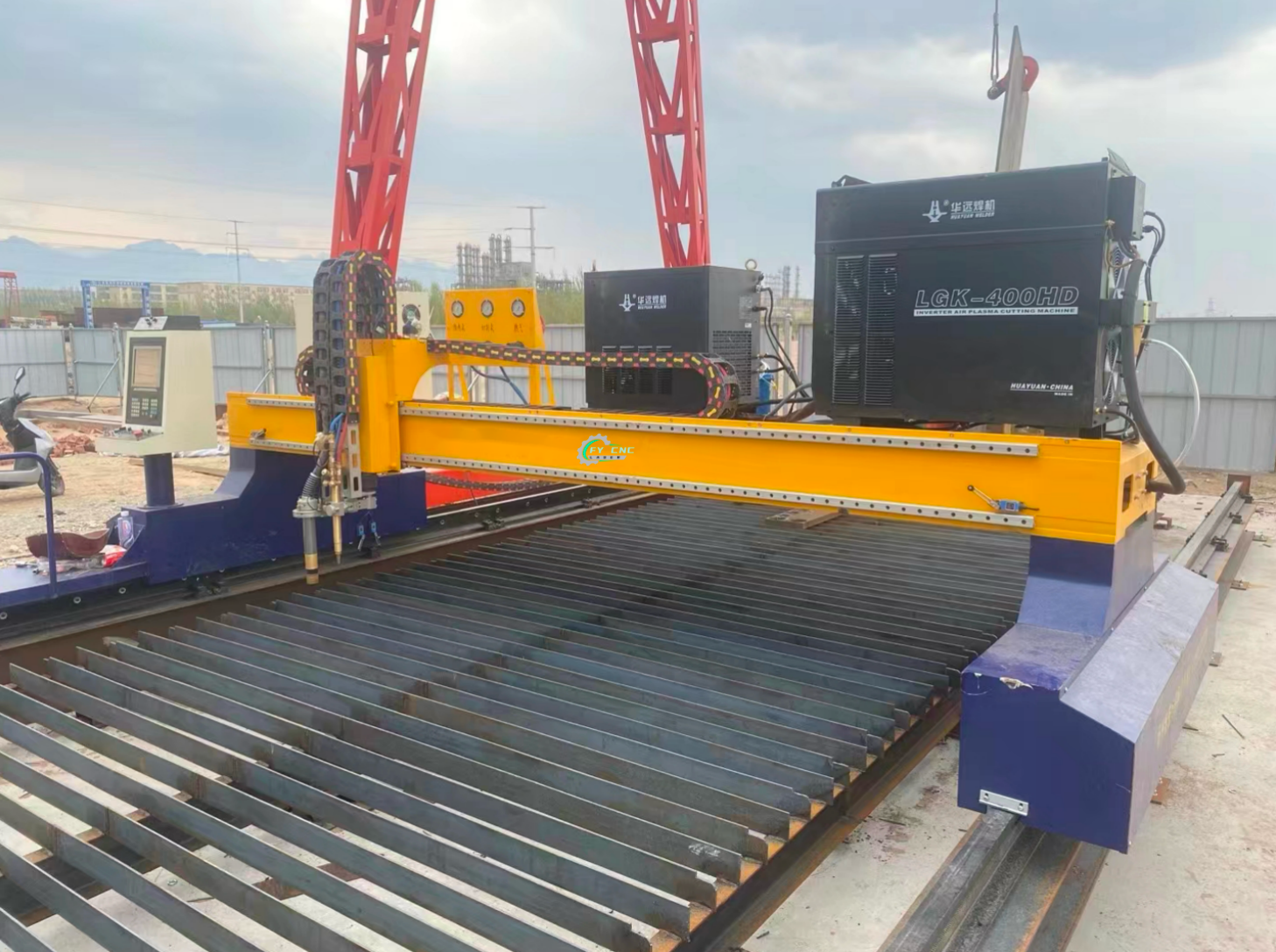

FY-GCM01
FY CNC
SPECIFICATION
| No. | ITEM | QTY | UNIT | SPEC |
|
1
|
FY-GCM01 body | 1 | Set | Steel plate welded |
| 2 | Width | 3000 | mm | cut width 2200mm |
| 3 | Length | 8000 | mm | cut length 6500mm |
| 4 | CNC system | 1 | Set | FL2300B |
| 5 | Flame cutting torch | 1 | Set | FY Group |

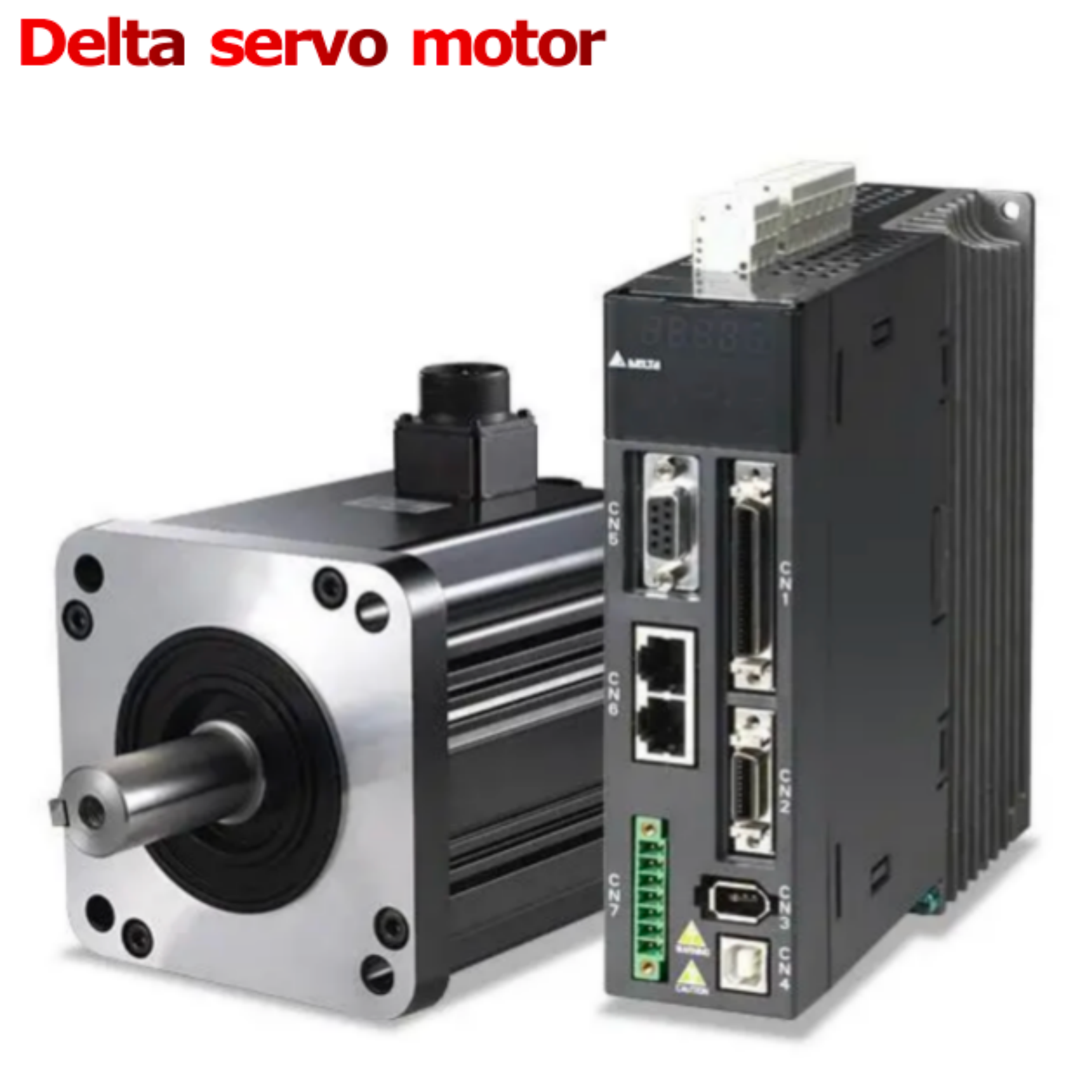

| 6 | Servo Motor | 3 | Set | Panasonic |
| 7 | Horizontal guide rail | 2 | Set | China |
| 8 | Longitudinal guide rail | 2 | Set | China |
| 9 | Gear rack | 3 | Set | China |
| 10 | Lifter | 1 | Set | FY Group |
| 11 | Clamp | 1 | Set | FY Group |
| 12 | Arc voltage regulator | 1 | Set | FL1621 |
| 13 | Reducer | 3 | Set | PL80 |
| 14 | Drag chain | 2 | Set | 45-125 |
| 15 | Electrical components | 1 | Set | Chint/Delixi |
| 16 | Automatic ignition system | 1 | Set | XZDC24 |
| 17 | Plasma power (optional) | 1 | Set | Huayuan LGK63 (Gas cooled cutting gun, cutting thickness below 8mm) |
| 18 | Huayuan LGK120 (Gas cooled cutting gun, cutting thickness below 12mm) | |||
| 19 | Huayuan LGK200 (Water cooled cutting torch, cutting thickness below 20mm) | |||
| 20 | Huayuan LGK300 (Water cooled cutting torch, cutting thickness below 32mm) | |||
| 21 | Huayuan LGK400 (Water cooled cutting torch, cutting thickness below 40mm) | |||

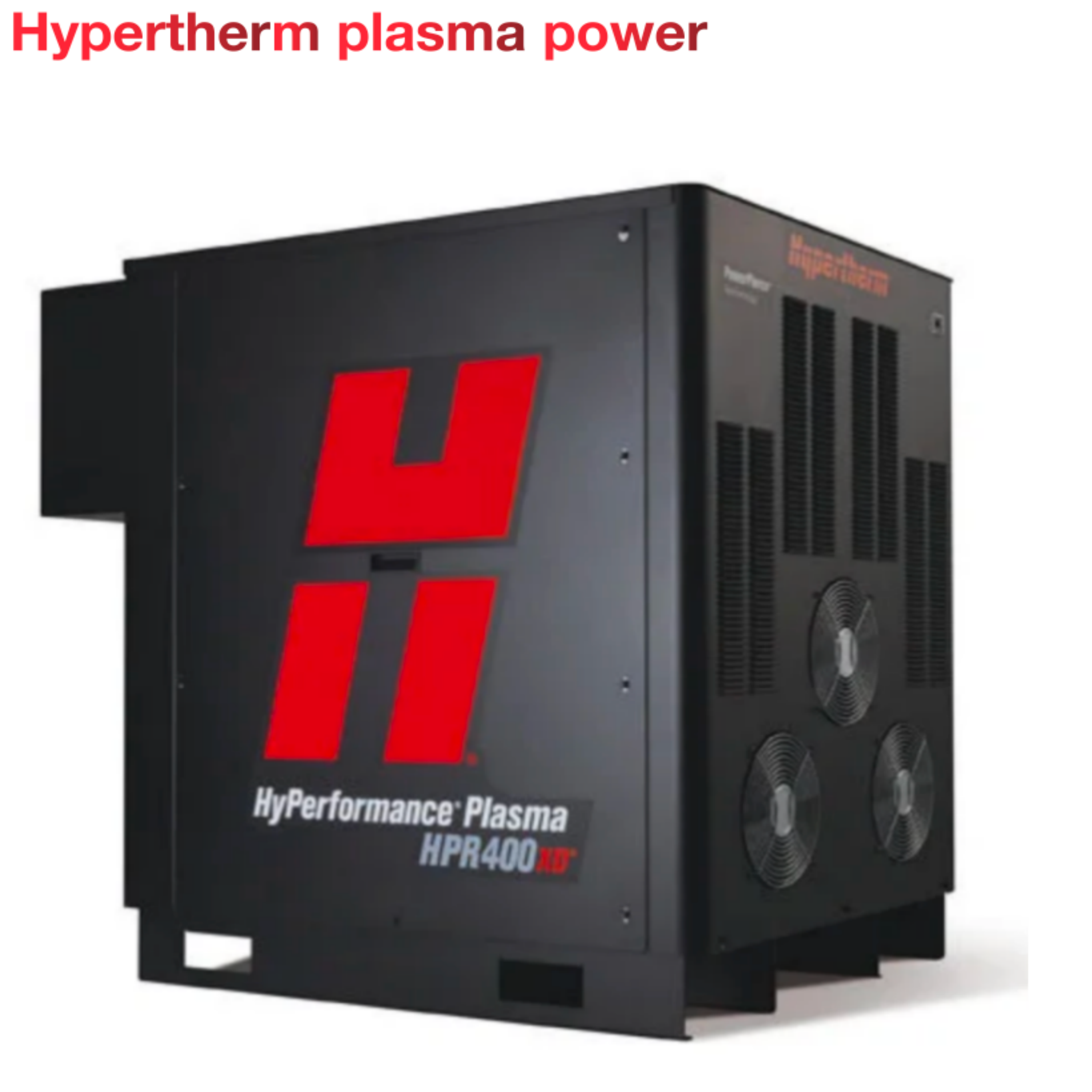

| 22 | Plasma power (optional) | 1 | Set | Hypertherm Max45 (Gas cooled cutting gun, cutting thickness below 8mm) |
| 23 | Hypertherm Max85 (Gas cooled cutting gun, cutting thickness below 16mm) | |||
| 24 | Hypertherm Max105 (Gas cooled cutting gun, cutting thickness below 20mm) | |||
| 25 | Hypertherm MaxPro200 (Water cooled cutting torch, cutting thickness below 25mm) | |||
| 26 | I bar | Customer preparing based on supplier's drawing | ||
| 27 | Water channel | |||
| 28 | Material rack | |||
| 29 | Air pump | |||
| 30 | Power cable | |||
| 31 | Air tube | |||
| 32 | Oxygen tube | |||
| 33 | Gas pipe | |||
| 34 | Soldering wire | |||
| 35 | Key selling point | Flexible cutting size and power | ||
| 36 | Applicable Industries | Manufacturing Plant, sheet metal cutting, machinery, shipbuilding, automobile, steel factory, metal workshop etc. | ||
PRODUCT DESCRIPTION
TECHNICAL PERFORMANCE
| No. | ITEM | SPEC | |
| 1 | Cutting torch lifting stroke | 50-100 mm | |
| 2 | Machine running speed | 50-6000mm/min (E&EO ≤±5%) | |
| 3 | Automatic elevation accuracy | ≤±1.0mm | |
| 4 | Machine G.W | About 2,100 KG | |
| 5 | Longitudinal line accuracy | ±0.2mm/10m | |
| 6 | Straight-line repetition accuracy | ±0.4mm/10m | |
| 7 | Comprehensive accuracy of the whole machine (Take the right comprehensive graph as the standard) Side length (four sides) 1000 x 1000 Dking speed 500-800mm / min |
||
| 8 | Direction accuracy | ±0.1mm | A) Positioning accuracy and repetition accuracy of the whole equipment: meet JB / T5102-1999 standard B) Cutting dimension accuracy and section quality: comply with JB/T10045.3-1999 standard |
| 9 | straightness | ±0.2mm | |
| 10 | roundness | ±0.2mm | |
| 11 | The diagonal difference | ±0.3mm | |
| 12 | Cutting accuracy | ±0.3mm | |
| 13 | Repeat positioning accuracy | ±0.1mm | |
| 14 | Machine line accuracy | 0.2mm | |
| 15 | Cutting surface quality (roughness) (Select δ =25 plate) |
Rz(um)=70+1.2a Visual inspection: Roughness: 12.5 |
|
QUALITY INSPECTION
PRODUCT ADVANTAGES
1. Strong stability: The gantry structure ensures that the machine remains stable during high-speed cutting, ensuring cutting quality.
2. Good cutting effect: Plasma cutting technology has the characteristics of smooth cutting surface and no burrs, beautiful cutting effect, and improves the overall quality of the product.
3. Energy saving and environmental protection: Compared to traditional cutting methods, plasma cutting generates less heat, has a smaller heat affected zone, and reduces the generation of dust and noise, making it more environmentally friendly.
4. Easy maintenance: The equipment has a simple structure and is easy to maintain, reducing maintenance costs in the later stage.
5. High cost-effectiveness: With efficient and precise cutting capabilities, combined with a user-friendly operating interface and a stable gantry structure, this product has a high cost-effectiveness and is an ideal choice in the field of metal cutting.
APPLICATION AREAS
CNC gantry plasma cutting machines are widely used in heavy industry, shipbuilding, steel structures, automotive manufacturing and other fields, suitable for high-speed and high-precision cutting of various metal materials. They are your best choice to improve production efficiency and ensure product quality.
AFTER SALES
We provide comprehensive after-sales service, including equipment installation, debugging, operation training, and troubleshooting, to ensure that you receive timely and professional support during use.

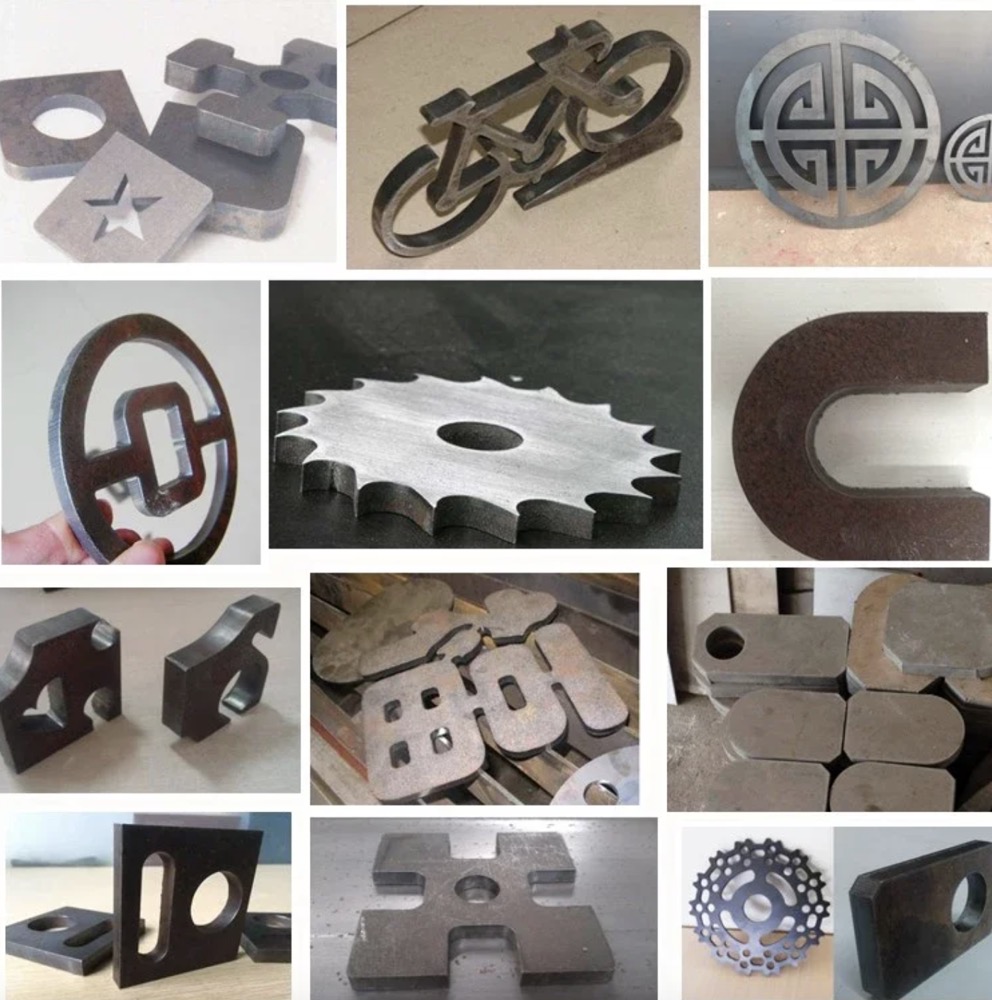

REAL CUTTINGS
PACKING & SHIPPING
CERTIFICATES
CUSTOMER VISIT
CUSTOMER FEEDBACK

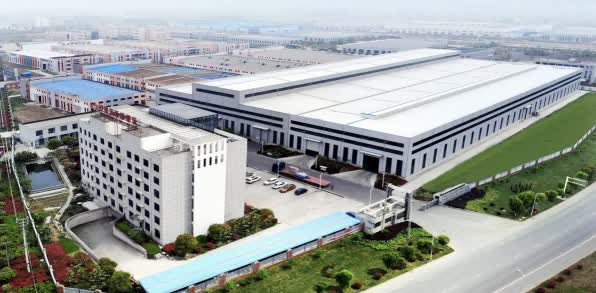

FACTORY VIEW
WHY FY GROUP?
Brand and manufacturer reputation
FY CNC Group has 25 years of experience in mechanical equipment manufacturing, and we are always committed to providing customers with competitive products and a comprehensive after-sales service system.
Usability and operational convenience
We provide our clients with user interface design diagrams, operational training materials, remote diagnostics, and software update instructions.
Compatibility and Scalability
Equipped with a complete set of software, compatible with most computers on the market.
After sales service and parts supply
Provide a complete equipment warranty ranging from 12-36 months. Provide details of remote and on-site training and technical support services.
Provide a complete set of accessories.
Price and cost-effectiveness
We can provide estimated consumables usage costs and cost budgets based on user needs.
Delivery time and service
Under normal circumstances, it takes 3-7 days to ship, and for light customization, it takes 7-15 days to complete the shipment. Please consult the sales manager for specific time.
Payment terms
Provide flexible payment methods, recommend buyers to choose online payment, accumulate online reputation, and provide a fully traceable logistics trajectory.
Case studies and reference clients
Finally, considering the special needs of international buyers, we can provide international transportation cost estimates, import tariff explanations, and local regulatory compatibility analysis.
FAQs
